HOWO Window Lifter Right WG1642330004
Content
Product Name | sinotruk HOWO Window Lifter Right WG1642330004 |
Brand | Sinotruk HOWO, HOWO A7,Shacman,Foton Auman, Faw, Beiben,Dongfeng, CAMC.XCMG |
Original factory | Shandong China |
Delivery Time | Within 5 working days after receipt of payment |
Port | Qingdao |
Minimum Quantity | 1 |
Package details | Cartoon, wooden box or as per customers requirement |
Payment Term | L/C, T/T, Western Union |

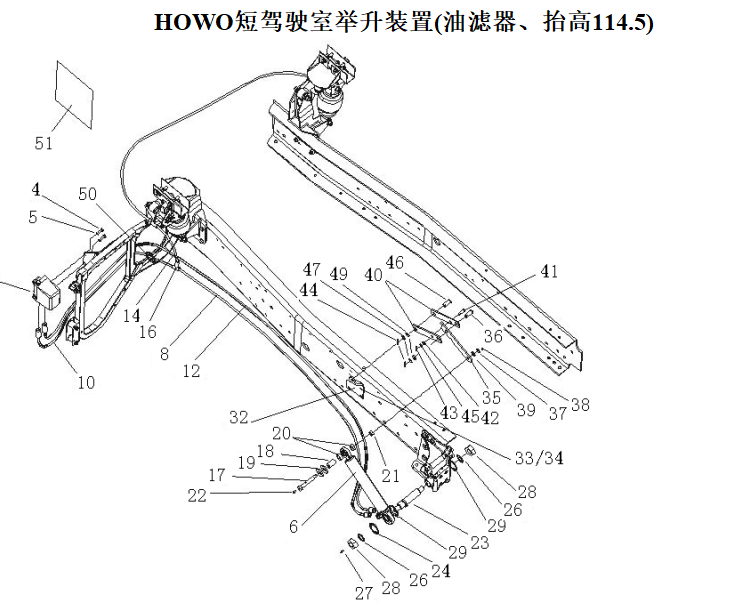

| 2 | WG9719826001 | 1 | Hydraulic manual oil pump |
| 4 | Q150B1020 | 2 | Hex head bolt |
| 5 | Q40310 | 2 | Spring washers |
| 6 | WG9719820002 | 1 | Lift the cylinders in the cab |
| 8 | WG9719820201 | 1 | Single elbow high-pressure hose (2060) |
| 10 | WG9719820202 | 1 | Single elbow high-pressure hose (1060) |
| 12 | WG9719820203 | 1 | Double elbow high-pressure hose (3150) |
| 14 | WG9719820204 | 1 | Single elbow hose |
| 16 | 190003559482 | 1 | Card sleeve t-way connector |
| 17 | AZ9719820008 | 1 | Cab flip cylinder support shaft I |
| 18 | AZ9719820009 | 1 | Bushings |
| 19 | Q40216 | 2 | Large washers |
| 20 | AZ9719820012 | 2 | Bushings |
| 21 | 190003888459 | 1 | Self-locking nut |
| 22 | AZ9003963001 | 1 | Grease nozzles (Q700B06) |
| 23 | AZ9719820015 | 1 | The cab flips the cylinder support shaft |
| 24 | WG9719820011 | 1 | Large gaskets |
| 26 | Q40124 | 1 | Flat washers |
| 27 | AZ9003963001 | 1 | Grease nozzles (Q700B06) |
| 28 | Q33424 | 2 | Self-locking nut |
| 29 | WG9719820013 | 2 | Washers |
| 32 | AZ9719820030 | 1 | Limit pull-up support |
| 33 | Q151C1235 | 4 | Hex head bolt (fine teeth) |
| 34 | 190003888457 | 4 | Self-locking nut |
| 35 | AZ9719820021 | 1 | On the bar |
| 36 | Q5101428 | 1 | Pin shaft (h11) |
| 37 | Q40114 | 1 | Flat washers |
| 38 | Q5004028 | 1 | Open pin |
| 39 | Q41814 | 1 | Wave elastic washers |
| 40 | AZ9719820022 | 2 | Under the brace |
| 41 | 190003903452 | 1 | Pin shaft |
| 42 | Q41710 | 1 | Saddle-shaped elastic washers |
| 43 | Q5003216 | 1 | Open pin |
| 44 | Q5004028 | 1 | Open pin |
| 45 | Q40112 | 1 | Flat washers |
| 46 | Q5101428 | 1 | Pin shaft (h11) |
| 47 | Q40114 | 1 | Flat washers |
| 48 | Q5004028 | 1 | Open pin |
| 49 | Q41814 | 1 | Wave elastic washers |
| 50 | 190003171356 | 15 | Plastic fastening straps |
| 51 | WG9719820098 | 1 | Description card |
| 序号 | 图 号 | 单车用量 | 名 称 |
| 1 | AZ9925360844 | 1 | 储气筒支架总成 |
| 2 | Q40112 | 9 | 平垫圈 |
| 3 | Q40312 | 9 | 弹簧垫圈 |
| 4 | Q340B12 | 6 | Ⅰ型六角头螺母 |
| 5 | WG9000360507 | 1 | 单向阀 |
| 6 | Q151C1230 | 3 | 六角头螺栓(细牙) |
| 7 | WG9000361102 | 1 | 双头端直通NG12 |
| 8 | WG9000360523 | 1 | 四回路保护阀 |
| 9 | WG9000360718 | 1 | 储气筒总成双腔Φ275/6+9L |
| 10 | Q340B08 | 4 | Ⅰ型六角头螺母 |
| 11 | Q40308 | 6 | 弹簧垫圈 |
| 12 | Q40108 | 6 | 平垫圈 |
| 13 | Q150B0820 | 6 | 六角头螺栓 |
| 14 | WG9000360717 | 1 | 储气筒总成Φ309/40L |
| 15 | WG9900360001 | 2 | 紧固带总成 |
| 16 | WG09 190017 | 2 | 拉紧销 |
| 17 | WG700 550013 | 2 | 张紧销 |
| 18 | Q218B0880 | 2 | 内六角圆柱头螺钉 |
| 19 | AZ9925360866 | 1 | 成形软管 |
| 20 | WG9000360521 | 1 | 空气干燥器 |
| 21 | Q150B1240 | 6 | 六角头螺栓 |
| 22 | AZ9725550001 | 4 | 大垫圈 |
| 序号 | 图 号 | 单车用量 | 名 称 |
| 1 | AZ9925360840 | 2 | 支架总成 |
| 2 | WG9000360715 | 1 | 储气筒总成Φ275/30L |
| 3 | Q340B10 | 6 | 六角螺母 |
| 4 | Q40310 | 6 | 弹簧垫圈 |
| 5 | Q40110 | 8 | 平垫圈 |
| 6 | WG99118360019 | 2 | 紧固带总成 |
| 7 | Q5003214 | 2 | 开口销 |
| 8 | WG93 250096 | 4 | 隔套 |
| 9 | Q150B1055 | 4 | 六角头螺栓 |
| 10 | Q5101048 | 2 | 销轴 |
| 序号 | 图 号 | 单车用量 | 名 称 |
| 1 | WG9000360715 | 1 | 储气筒总成Φ275/30L |
| 2 | Q340B12 | 6 | 六角螺母 |
| 3 | Q40312 | 6 | 弹簧垫圈 |
| 4 | Q40112 | 6 | 平垫圈 |
| 5 | Q150B1240 | 6 | 六角头螺栓 |
| 6 | AZ9925360860 | 1 | 储气筒支架总成 |
| 7 | WG9000360716 | 1 | 储气筒总成Φ275/20L |
| 8 | WG9719360024 | 4 | 紧固带总成 |
| 9 | WG09 190017 | 4 | 拉紧销 |
| 10 | WG700 550013 | 4 | 张紧销 |
| 11 | Q218B0880 | 4 | 内六角圆柱头螺钉 |
| 序号 | 图 号 | 单车用量 | 名 称 |
| 1 | WG9000360524 | 2 | 继动阀 |
| 2 | AZ9725360044 | 2 | 继动阀支架 |
| 3 | Q40108 | 4 | 平垫圈 |
| 4 | Q40308 | 4 | 弹簧垫圈 |
| 5 | Q340B08 | 4 | 1型六角螺母 |
| 6 | Q340B10 | 4 | 六角螺母 |
| 7 | Q40310 | 4 | 弹簧垫圈 |
| 8 | Q40110 | 4 | 平垫圈 |
| 9 | Q150B1035 | 4 | 六角头螺栓 |
| 序号 | 图 号 | 单车用量 | 名 称 |
| 1 | WG9000360525 | 1 | 挂车控制阀 |
| 2 | AZ9925360847 | 1 | 挂车控制阀支架 |
| 3 | Q40108 | 2 | 平垫圈 |
| 4 | Q40308 | 2 | 弹簧垫圈 |
| 5 | Q340808 | 2 | 1型六角螺母 |
| 6 | Q150B1040 | 2 | 六角头螺栓 |
| 7 | Q40110 | 2 | 平垫圈 |
| 8 | Q40310 | 2 | 弹簧垫圈 |
| 9 | Q340810 | 2 | 六角螺母 |
| 序号 | 图 号 | 单车用量 | 名 称 |
| 1 | AZ9925360813 | 1 | 螺旋管安装支架总成 |
| 2 | Q340810 | 8 | 六角螺母 |
| 3 | Q40310 | 8 | 弹簧垫圈 |
| 4 | Q40110 | 8 | 平垫圈 |
| 5 | AZ9725550001 | 8 | 大垫圈 |
| 6 | Q150B1040 | 8 | 六角头螺栓 |
| 7 | Q150B0820 | 6 | 六角头螺栓 |
| 8 | AZ9718360028 | 1 | 工作灯安装支架 |
| 9 | Q40108 | 6 | 平垫圈 |
| 10 | Q40308 | 6 | 弹簧垫圈 |
| 11 | Q340B08 | 6 | 1型六角螺母 |
| 12 | AZ9718360027 | 2 | 挂车接头固定支架 |
| 序号 | 图 号 | 单车用量 | 名 称 |
| 1 | AZ9725360027 | 2 | 支架（ABS电磁阀） |
| 2 | Q150B1045 | 4 | 六角螺母 |
| 3 | WG9000360515 | 2 | ABS电磁阀WABCO |
| 4 | Q150B0880 | 4 | 螺栓 |
| 5 | Q40108 | 4 | 平垫圈 |
| 6 | Q40308 | 4 | 弹簧垫圈 |
| 7 | Q340B08 | 4 | 1型六角螺母 |
| 8 | Q40110 | 4 | 平垫圈 |
| 9 | Q40310 | 4 | 弹簧垫圈 |
| 10 | Q340B10 | 4 | 1型六角螺母 |
| 序号 | 图 号 | 单车用量 | 名 称 |
| 1 | WG9000360515 | 2 | ABS电磁阀WABCO |
| 2 | Q150B0880 | 4 | 螺栓 |
| 3 | Q40108 | 4 | 平垫圈 |
| 4 | Q40308 | 4 | 弹簧垫圈 |
| 5 | Q340B08 | 4 | 1型六角螺母 |
